2114-71109 Якір HITACHI

Replacing: 2114-71109Servicing: S114-570A, S114-570B, S114-570C, S114-650, S114-650A, S114-652,S114-652A, S114-652B, S114-652C, S114-652D, S114-652P12 V., 0.9 kW., Shaft L. 186.50,Splines 10, Rotation CR.

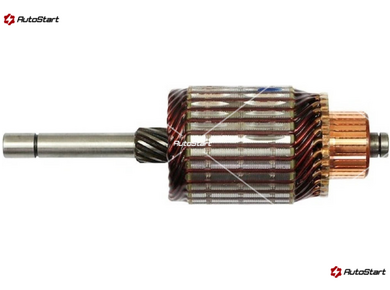

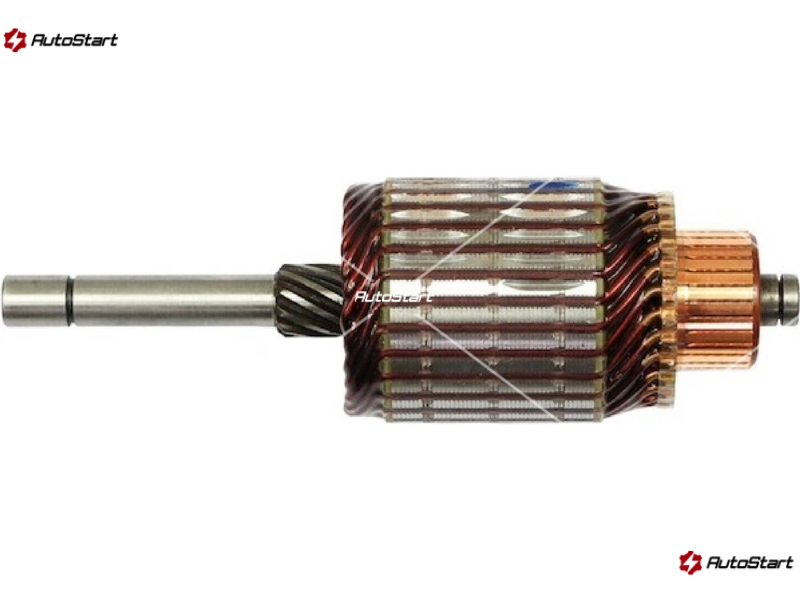

Armature for Hitachi Starter S114-570, -A, -B, -C, -626, -650, -A, -652, -A, -B, -C, -P, -653, -A, -B, -655, -A, -656, -A, -657, -A, -B, -P, -663A, -B, -P, -666
Notes / Dimensions / Application :
CE LENGTH 22.2 // CE SHAFT DIA 12.4 // COMM DIA 33.5 // DE LENGTH 93.0 // DE SHAFT DIA 12.4 // LAM DIA 57.4 // LAM STACK LENGTH 47 // NUM COMM BARS 29 // OA LENGTH 186.6 // SPLINES 10 // VOLTS 12
Replaces / Interchanges / Components
HITACHI: 2114-71109, NISSAN: 23310-41B60, YANMAR: 114371-77110, CARGO 230758
Maniac #s
18055, 18218, 19751
Unit's Original Equipment #s
HITACHI S114-570, S114-570A, S114-570B, S114-570C, S114-626, S114-650, S114-650A, S114-652, S114-652A, S114-652B, S114-652C, S114-652P, S114-653, S114-653A, S114-653B, S114-655, S114-655A, S114-656, S114-656A, S114-657, S114-657A, S114-657B, S114-657P, S114-663A, S114-663B, S114-663P, S114-666
NISSAN: 23300-53Y00, 23300-53Y01, 23300-73Y00, 23300-73Y01
YANMAR: 119631-77011, 119865-77012, 124295-77010, 124298-77010, 160891-77020
